Understanding Microphone Arrays for Live Sound

Microphone arrays have become a cornerstone of modern live sound production, offering engineers unprecedented control over audio capture and spatial processing. A microphone array typically consists of multiple microphone elements arranged in geometric patterns—linear, circular, spherical, or custom configurations—that work together to achieve directional sensitivity, noise rejection, and spatial imaging that single microphones cannot provide. When combined with live effects processing, these arrays unlock creative possibilities ranging from immersive surround sound to precise beamforming that targets specific sound sources while rejecting ambient noise.

The fundamental advantage of microphone arrays lies in their ability to capture sound with phase coherence across multiple channels. This phase relationship enables techniques such as delay-and-sum beamforming, where signals from each microphone are time-aligned and summed to reinforce sound arriving from a desired direction while canceling sounds from other directions. For live sound engineers, this means cleaner vocal pickup, reduced stage bleed, and more effective use of spatial effects like reverb and panning.

Understanding the specific array configuration you are working with is essential. Linear arrays excel at creating narrow pickup patterns in one plane, making them ideal for lecture halls or conference settings. Circular or spherical arrays provide omnidirectional coverage with steerable beams, which is valuable for immersive performances. Custom arrays, often built from distributed microphones across a stage, allow engineers to create unique spatial effects that respond dynamically to performer movement. Sound on Sound’s guide to microphone arrays provides an excellent technical foundation for engineers looking to deepen their understanding of array theory.

Core Principles of Live Effects Processing with Arrays

Before applying effects to microphone array signals, engineers must internalize several core principles that govern how effects interact with multi-channel audio. The most critical of these is phase coherence. When multiple microphones capture the same sound source at different distances, the resulting signals arrive at slightly different times. Effects processors, particularly those applying reverb, delay, or modulation, can amplify or cancel certain frequencies depending on how these phase relationships are managed.

Another essential principle is gain staging across the array. Each microphone in the array should have consistent preamp gain to avoid introducing noise or distortion that becomes magnified when signals are summed or processed. Inconsistent gain levels create an unstable foundation for effects, causing certain channels to dominate the effect return or introducing unwanted artifacts during spatial processing.

Finally, engineers must account for the polar pattern of each microphone element within the array. Cardioid, supercardioid, and omnidirectional patterns each interact differently with room acoustics and sound source placement. When effects are applied, these polar patterns influence how much room ambience, feedback, or off-axis coloration enters the effect chain. Audio-Technica’s resource on array techniques offers practical guidance on selecting polar patterns for various live applications.

Microphone Placement Strategies for Optimal Effects

Strategic microphone placement within an array directly determines how effectively live effects will perform. The goal is to capture clean, phase-coherent signals that respond predictably to processing. For a standard stereo pair within a larger array, the ORTF (Office de Radiodiffusion Télévision Française) configuration places two cardioid microphones 17 centimeters apart at a 110-degree angle, producing natural stereo imaging that works exceptionally well with spatial effects.

When working with larger arrays, consider the following placement guidelines:

  • Maintain consistent source-to-microphone distances within each zone of the array to minimize comb filtering when effects like chorus or flanging are applied across channels.
  • Position boundary microphones at reflective surfaces to capture early reflections that enhance reverb realism without adding pre-delay artifacts.
  • Use height differentials in vertical arrays to create natural delay gradients that can be exploited by ping-pong delay effects or immersive panning algorithms.
  • Avoid placing microphones equidistant from monitors to reduce feedback buildup that becomes more difficult to control when effects introduce gain at specific frequencies.

For live vocal performances using a handheld microphone within a larger array setup, maintain a consistent 2-4 inch distance from the microphone capsule. This proximity effect enhances low-frequency presence, which can be further shaped with EQ before adding effects like reverb or delay. When the vocal microphone is part of a distributed array, position it slightly forward of other array elements to establish it as the primary source in the mix.

Equalization Techniques for Array-Based Effects

Equalization is the single most important preprocessing step before applying live effects to microphone array signals. Without proper EQ, effects processors amplify not only the desired signal but also room resonances, handling noise, and frequency buildup that occurs when multiple microphones capture the same source.

Subtractive EQ Before Effects

Begin by applying subtractive EQ to each channel or subgroup within the array. Identify and attenuate problem frequencies:

  • Low-frequency rumble below 80 Hz from HVAC systems, stage vibrations, or wind noise. Use a high-pass filter set between 80-120 Hz depending on the source material.
  • Mud frequencies around 250-500 Hz that accumulate when multiple microphones capture the same source. A gentle cut of 2-4 dB can dramatically clean up reverb returns.
  • Harshness in the 2-5 kHz range that becomes exaggerated when delay or modulation effects are applied.
  • Feedback-prone frequencies identified during sound check, typically in the 800 Hz-1.2 kHz and 3-4 kHz ranges for vocal applications.

Additive EQ for Effect Clarity

After removing problematic frequencies, apply gentle boosts to enhance clarity and presence in the effect chain:

  • Presence boost at 3-5 kHz helps effects like delay and reverb cut through the mix without increasing overall level.
  • Air band boost at 10-15 kHz adds shimmer to reverb tails and stereo width to spatial effects.
  • Low-mid body at 150-300 Hz can be boosted on specific channels to add warmth to effect returns without muddying the overall mix.

An important technique is to apply EQ after the effect in some cases, particularly for reverb and delay sends. By equalizing the effect return rather than the source signal, you can shape the tonal character of the effect independently from the dry signal. This approach is especially powerful with microphone arrays, where different channels can be sent to different effects with their own EQ profiles. ProSoundWeb’s EQ techniques for live sound offers additional insight into frequency management for multi-microphone setups.

Dynamic Effects: Reverb, Delay, and Modulation

Dynamic effects transform the spatial and temporal characteristics of microphone array signals, creating the sense of depth, movement, and atmosphere that defines professional live sound. Each effect type interacts with array configurations in distinct ways that engineers must understand to achieve predictable results.

Reverb Techniques for Microphone Arrays

Reverb is the most commonly used effect in live sound, and microphone arrays offer unique opportunities for creating natural and immersive reverb environments. The key is to use the array itself to capture room acoustics and then blend processed reverbs with the natural ambient signal.

For a traditional send-return reverb setup, route multiple array channels to a shared reverb bus. The ratio of each channel’s send level should reflect its distance from the primary sound source. Close microphones contribute less reverb, while ambient or distant microphones contribute more, creating a natural depth gradient. Adjust pre-delay settings between 20-50 milliseconds to separate the dry signal from the reverb onset, preventing muddiness.

Advanced engineers can use multiple reverbs with different decay times for different array zones. A short room reverb (0.8-1.2 seconds) works well for close vocal microphones, while a longer hall reverb (2.0-3.0 seconds) can be applied to ambient array channels for orchestral or choral performances. This layered approach creates a sense of depth and space that single-reverb setups cannot achieve.

Delay Effects Across Array Channels

Delay effects become particularly interesting when applied across multiple array channels. By setting different delay times and feedback levels on each channel, engineers can create rhythmic patterns that move across the stereo field or through a surround array. This technique is especially effective for percussion, guitar solos, or vocal phrases that benefit from rhythmic repetition.

When using delay with microphone arrays, consider these approaches:

  • Ping-pong delay alternates between left and right channels, creating movement that enhances the stereo image. In larger arrays, extend this concept across multiple channels for a rotating effect.
  • Multi-tap delay uses multiple delay times from a single input, with each tap routed to a different array channel. This is ideal for creating complex, evolving soundscapes.
  • Slapback delay with a single repeat at 75-150 milliseconds adds thickness to vocals without the complexity of longer delay patterns. Apply this to the primary vocal microphone only to maintain clarity.

Delay feedback must be managed carefully in array setups. Excessive feedback can cause buildup at specific frequencies, particularly in the 200-500 Hz range where room modes dominate. Insert an EQ in the delay feedback loop to cut these frequencies, allowing the delay to sustain without becoming muddy or resonant.

Modulation Effects: Chorus, Flanger, and Phaser

Modulation effects add motion and thickness to microphone array signals by varying the signal’s phase, pitch, or amplitude over time. These effects are particularly sensitive to the phase relationships within an array, and improper setup can result in phase cancellation or unnatural sounding modulation.

Chorus works exceptionally well with microphone arrays when applied as a stereo or multi-channel effect. By sending the array signal to a stereo chorus with slightly different modulation rates on each side, the effect creates a wide, lush sound that maintains its center image. Use chorus sparingly on lead vocals to avoid pitch wavering, but apply it more generously to backing vocals or instrument arrays for thickness.

Flanging creates a sweeping comb filter effect that is dramatic but can become disorienting in large arrays. Use flanging on a single channel or a small subgroup within the array rather than the entire mix. Set the delay time between 1-10 milliseconds with a slow modulation rate (0.1-0.5 Hz) for subtle movement, or faster rates for pronounced effects on specific instruments.

Phasing is lighter and more musical than flanging, making it suitable for broader array applications. The effect is particularly effective on ambient microphones within the array, where it adds movement to the room sound without affecting direct signal clarity. Set the phaser’s feedback low (20-40%) to maintain a natural sound.

Managing Feedback in Effects-Heavy Array Setups

Feedback is the most significant challenge when using live effects with microphone arrays. Effects processing, particularly reverb and delay, increases the overall gain at certain frequencies and extends the time window in which feedback can build. The combination of multiple microphones and effects creates a system with high gain potential and complex phase relationships, making feedback management a critical skill.

Systematic Feedback Prevention

Implement a structured approach to feedback prevention before adding effects:

  • Ring out the system with each microphone in the array individually before combining them. Use a graphic EQ or parametric EQ to identify and notch out feedback frequencies for each channel.
  • Apply a feedback suppressor to the main output bus, set to moderate sensitivity. This catches feedback peaks that emerge after effects are added.
  • Maintain at least 6 dB of gain margin before feedback on each channel. Effects processing will consume some of this margin, so starting with headroom is essential.
  • Use high-pass filters aggressively on all microphones except those intended for low-frequency sources. Many feedback instances start in the low-mid range where room resonances accumulate.

Effects-Specific Feedback Control

Certain effects require specific feedback management strategies. Reverb with long decay times is particularly prone to feedback because the sustained signal continuously excites room modes. To mitigate this:

  • Insert a gate or compressor on the reverb return to reduce the tail length when no signal is present.
  • Use early reflection-only reverb algorithms, which provide spatial information without sustained decay.
  • Set reverb high-frequency damping to 50-70% to prevent sibilance and harshness from building up in the reverb tail.

Delay effects can create rhythmic feedback patterns that are harder to detect than continuous feedback. Listen for repeating artifacts that grow louder with each repeat. If this occurs, reduce the delay feedback percentage or insert an EQ in the feedback loop to cut frequencies between 800 Hz and 4 kHz, where the human ear is most sensitive to repetitive patterns.

Advanced Spatial Effects and Immersive Audio

Microphone arrays enable spatial audio techniques that go beyond traditional stereo effects. With the right array configuration and processing, engineers can create immersive sound environments that respond to performer movements and audience positions.

Beamforming for Source-Specific Effects

Beamforming uses phase alignment across array elements to create directional pickup patterns that can be steered electronically. This technique allows engineers to apply effects to specific sound sources without affecting others, even when sources are physically close together. For example, a beamformed array can isolate a vocalist from surrounding instruments, allowing heavy reverb on the voice without washing out the band.

To implement beamforming for effects:

  • Use a linear or planar array with at least 4-8 elements for meaningful beam control.
  • Calculate delay times for each element based on the desired steering angle and sound source position.
  • Apply effects to the beamformed output, which has already rejected off-axis sound for cleaner processing.
  • Use multiple beams to create independent effect zones within the same performance space.

Ambisonics and Spatial Audio Effects

Ambisonic microphone arrays capture sound in a full-sphere format that can be decoded to various playback systems, from stereo to Dolby Atmos. When using ambisonic arrays for live effects, consider these approaches:

  • Apply reverb that respects the ambisonic rotational information, maintaining spatial coherence as sound sources move around the array.
  • Use binaural decoding for headphone-based monitoring, creating an immersive experience that mirrors the acoustic environment.
  • Implement dynamic panning algorithms that move effects through the ambisonic sphere in response to performer movement or automation.

Sound Devices’ overview of ambisonic techniques provides a useful starting point for engineers interested in spatial audio with microphone arrays.

Practical Workflow for Live Sound Engineers

Integrating these techniques into a reliable live workflow requires systematic preparation and real-time adaptability. The following workflow outline helps engineers move from setup to performance with confidence.

Pre-Show Preparation

Before the performance, invest time in array calibration and effect presets:

  • Test all microphone elements in the array for phase coherence and consistent output levels.
  • Create effect presets on the digital mixer or effect processor for each song or segment of the performance. Store variations for different musical dynamics.
  • Map effect parameters to physical faders or encoders for quick adjustments during the show.
  • Document the array layout and effect routing for quick troubleshooting.

Sound Check Priorities

During sound check, focus on establishing a clean foundation before adding effects:

  • Set gain structure for each array channel with 12-18 dB of headroom above typical performance levels.
  • Ring out each channel individually and the combined array output.
  • Apply high-pass filters and subtractive EQ before engaging effects.
  • Introduce effects one at a time, starting with reverb, then delay, then modulation.
  • Set effect send levels conservatively, typically starting at 20-30% wet mix and adjusting upward based on room response.

Real-Time Adjustments During Performance

During the show, listen critically and make subtle adjustments:

  • Monitor effect returns on solo or AFL (After Fader Listen) to catch feedback or excessive buildup before it becomes audible in the main mix.
  • Adjust reverb decay and pre-delay between songs to match tempo changes or mood shifts.
  • Use mute groups to disable effects during spoken interludes or quiet passages where processing artifacts become more noticeable.
  • Communicate with the monitor engineer about effect sends to wedge or in-ear monitors, as effects that sound good in the house can cause feedback in monitors.

Choosing the Right Tools for Array Processing

The hardware and software used for processing microphone array signals significantly influence the quality and flexibility of live effects. Digital mixing consoles with ample DSP capacity are the standard choice, but the specific features that matter most for array processing include:

  • Flexible routing matrices that allow any channel to be sent to any effect bus with independent pre/post fader options.
  • Multi-band compression that allows frequency-specific dynamic control before effects are applied.
  • Low-latency analog-to-digital conversion to maintain phase coherence across the array. Total round-trip latency should not exceed 2-3 milliseconds for live monitoring.
  • Support for multiple effect engines that can run simultaneously, allowing different reverb, delay, and modulation settings for different array zones.

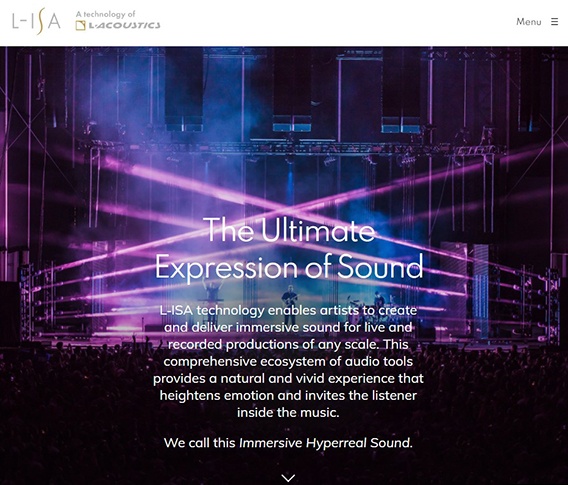

For engineers working with larger arrays, dedicated spatial audio processors like the L-Acoustics L-ISA processor or Meyer Sound’s Constellation system offer advanced beamforming and object-based mixing capabilities. These systems integrate directly with microphone arrays and provide specialized algorithms for immersive effects processing. L-Acoustics L-ISA technology page provides technical specifications and application examples for spatial audio with arrays.

Conclusion

Mastering live effects with microphone arrays requires a combination of technical understanding, systematic preparation, and artistic sensitivity. The techniques outlined in this guide—from strategic placement and equalization to feedback management and spatial effects—provide a foundation for engineers seeking to elevate their live sound productions. As array technology continues to evolve with advancements in digital processing and spatial audio, the possibilities for creative and immersive live sound will only expand. The most effective engineers will be those who combine technical discipline with a willingness to experiment, always listening critically and adapting their approach to the unique demands of each performance space and artistic vision.
