Understanding Frequency Analysis Fundamentals

Frequency analysis tools convert audio into a visual representation of energy distribution across the audible spectrum. The most common display is a spectrum analyzer, which plots frequency (horizontal axis, typically 20 Hz to 20 kHz) against amplitude (vertical axis, in decibels). The resolution of this display is determined by the FFT (Fast Fourier Transform) size — a larger FFT (e.g., 8192 or 16384) gives better frequency detail but slower time response, while a smaller FFT (e.g., 1024 or 2048) updates faster but blurs frequencies together. For podcast mixing, an FFT size of 4096 or 8192 offers a good balance, allowing you to spot narrow resonant peaks without missing transient content like consonants.

Understanding how to read a spectrum is critical. A flat, slightly downward-sloping line indicates a natural, uncolored sound. A large bump in the low end suggests rumble or proximity effect. A narrow spike in the mids often points to a room mode or electrical hum. Smooth, even roll‑off above 8 kHz is typical for voices — anything that jumps up sharply there signals sibilance or distortion. The analyzer also shows the noise floor: any content below the vocal signal that sits closer to the top of the graph adds unwanted hiss or room tone. By learning to interpret these patterns, you move from guessing to precise, data‑driven mixing.

Identifying Common Spectral Problems in Podcasts

Low‑End Build‑Up and Subsonic Rumble (Below 100 Hz)

Rumble from HVAC systems, foot traffic, or microphone handling can accumulate below 80 Hz. On a spectrum analyzer this appears as a rising slope toward the left edge. A high‑pass filter set at 80–120 Hz with a 12 dB/octave slope typically clears this without affecting vocal body. However, some voices (especially deeper male voices) contain useful fundamentals down to 80 Hz, so check the analyzer to see if the energy below your chosen cutoff is actual voice or noise.

Muddiness and Boxiness (200–500 Hz)

This range is the most common cause of unclear podcast audio. A broad peak at 200–300 Hz adds a “cardboard box” resonance; a buildup at 400–500 Hz makes voices sound nasal or congested. Multiple hosts competing in this range can create a muddy, indistinct blend. Use a parametric EQ with a wide Q (around 0.7–1.0) and a gentle cut of 2–4 dB centered on the problem area. The analyzer shows the before and after, confirming that the hump flattens without creating a hole.

Harshness and Sibilance (4–10 kHz)

Excitement in the 4–6 kHz region makes “s” and “t” sounds piercing. A narrow spike around 8–9 kHz can cause listener fatigue after just a few minutes. The spectrum analyzer reveals these as narrow peaks that stick up above the descending vocal curve. A dynamic EQ (discussed later) or a static notch with a narrow Q (2–6) of 1–3 dB can tame them. Be careful not to over‑cut, as that range also contains vocal presence and intelligibility.

Unbalanced Stereo Width and Phase Issues

Many analyzers include a stereo or mid‑side mode that shows the relative energy in the center (mono compatible) versus the sides (stereo difference). A podcast with multiple voices or stereo music beds can suffer if the side content is too loud, causing the center voice to lose punch. The mid‑side display helps you see if the voice sits solidly in the mid channel and if the sides contain only ambience and not vocal leakage.

Selecting the Right Analyzer for Your Workflow

The choice of analyzer depends on your budget, DAW, and need for advanced features. Below are four categories with representative tools.

  • Built‑in DAW analyzers – Every major DAW includes a basic spectrum analyzer: Pro Tools has AudioSuite EQ and the built‑in EQ curve, Logic Pro’s Analyzer, Ableton Live’s Spectrum, Reaper’s JS Spectrum Analyzer. These are free and sufficient for fundamental checks. However, they often lack adjustable FFT size, peak hold, and mid‑side modes.

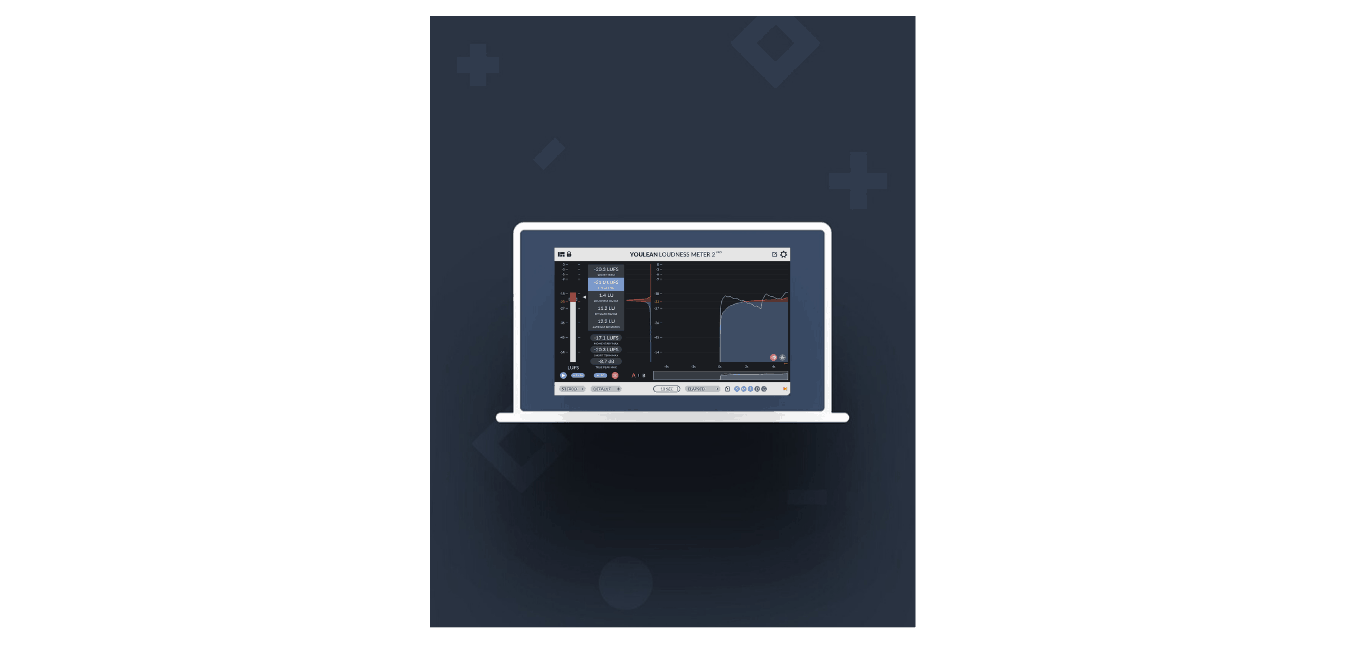

  • Free third‑party workhorses – Voxengo SPAN is the gold standard: it offers multiple display modes (spectrum, spectrogram, waveform), adjustable FFT size up to 16384, mid‑side analysis, and realistic analog‑style smoothing. Youlean Loudness Meter combines a loudness meter with a real‑time spectrum display and supports up to 8192 FFT. Both are excellent for podcasters on a budget.
  • Metering suites with spectrum analysis – iZotope Insight is the industry standard for broadcast compliance. It includes a spectrum analyzer with multiple views (FFT, RTA, spectrogram), a loudness meter (ITU‑R BS.1770), a stereo field display, and a histrogram for long‑term statistics. It’s ideal for podcasters aiming for professional loudness standards (e.g., -16 LUFS for podcasts). Waves WLM offers similar loudness and spectrum functionality at a lower price.
  • EQ plugins with integrated analyzer – FabFilter Pro‑Q 3 is arguably the most popular for engineers who want both EQ and spectrum analysis in one interface. Its real‑time display shows both the input and output spectra, with the ability to hover over a peak and hear that frequency via a built‑in tone generator. The “spectrum grab” lets you click on a peak to place an EQ band. iZotope Neutron also includes a spectrum analyzer with its dynamic EQ and masking detection features.

A Step‑by‑Step Workflow Using a Spectrum Analyzer

Step 1: Insert the Analyzer and Set It Up

Place the analyzer on the master bus to monitor the overall mix, and on each individual track you plan to EQ. Set the FFT size to 8192 for a good trade‑off between resolution and speed. Turn on “peak hold” (if available) to see the maximum amplitude at each frequency over several seconds — this reveals brief spikes that might cause distortion. For vocal tracks, set the windowing type to “Blackman‑Harris” or “Flat Top” for accurate amplitude readouts.

Step 2: Play the Podcast and Identify Problem Areas

Let your episode play from start to finish. Watch the analyzer for persistent peaks that stand 3–6 dB above the average curve. Mark the frequency and note its behavior (constant or intermittent). Also watch the noise floor — if it rises above -60 dBFS in the lows, you may have room noise or ground hum. For stereo tracks, switch to mid‑side mode to ensure the voice is dominant in the mid channel.

Step 3: Apply Targeted Equalization

Insert a parametric EQ on the track that has the problem. Use cuts rather than boosts whenever possible to preserve headroom. For muddiness at 300 Hz, place a band with a wide Q (0.8–1.2) and reduce by 2–3 dB. For a room resonance at 200 Hz, try a sharper Q (2–4) with a 3–5 dB cut. The analyzer updates in real time — you’ll see the peak drop as you adjust. Listen carefully: if the voice starts to sound thin, widen the Q or reduce the cut. After each adjustment, bypass the EQ to compare with the original; the analyzer confirms that the spectrum flattens.

Step 4: Use a Reference Track for Tonal Balance

Import a professionally‑produced podcast episode into your DAW. Solo the reference and your mix on alternate tracks. Use the analyzer’s “persistent” mode to see the average spectrum of each. Your mix’s spectrum should closely follow the reference’s shape: a gentle high‑frequency roll‑off, a slight low‑mid presence, and no extreme peaks. This is not about copying the exact curve — every voice is different — but about ensuring no frequency range is drastically over‑ or under‑represented. Adjust your EQ until the two spectra overlap within 2–3 dB across the vocal range.

Step 5: Check in Different Listening Environments

After you’re satisfied in your control room, export a snippet and play it on earbuds, laptop speakers, and your car stereo. The analyzer on your master bus remains unchanged, but your own perception of clarity will vary. If the mix sounds muddy on small speakers, revisit the 200–400 Hz range. If it sounds harsh on bright headphones, check the 4–6 kHz range again. The analyzer’s data remains your objective anchor; trust it when your ears become ambiguous due to listening fatigue.

Advanced Techniques for Polished Podcast Audio

Dynamic EQ Guided by the Analyzer

Some problems occur only occasionally. For example, a guest who leans into the microphone may trigger proximity effect only during loud passages. A dynamic EQ like FabFilter Pro‑Q 3 or iZotope Neutron can apply a cut that activates when the energy in a specific frequency band exceeds a threshold. Set the dynamic band’s detection to the same frequency you want to cut. Watch the analyzer: when the problematic spike appears, you’ll see the gain reduction meter engage and the spike flatten. This leaves the sound untouched during normal speech, preserving naturalness.

Mid‑Side Equalization for Width Control

Podcasts with stereo music beds or ambience can benefit from mid‑side EQ. Insert an EQ that supports mid‑side mode (most high‑end EQs do). Use a spectrum analyzer in mid‑side mode to identify problems: for example, if the side channel has excessive low frequency energy (say, from a rumbling air conditioner panned to one side), cut that band only from the side channel. This removes noise without affecting the center voice. You can also add a gentle high‑shelf boost to the side channel to open up the stereo image while keeping the vocal clear. The analyzer shows the before and after for both mid and side spectra.

Harmonic Distortion and Clipping Detection

Advanced analyzers like Voxengo SPAN or iZotope Insight can display harmonics. If you see narrow peaks at multiples of a fundamental (e.g., 200, 400, 600, 800 Hz), that indicates harmonic distortion from clipping, over‑compression, or a bad cable. The analyzer makes these visible long before they become audible as grating artifacts. In a podcast, even low‑level distortion adds listener fatigue. Use the analyzer to identify the source: solo each track and see which one produces the harmonic pattern. Once found, reduce that track’s gain or adjust compressor settings until the harmonics drop below -50 dB relative to the fundamental.

Long‑Term Spectrum Monitoring for Consistency

One powerful feature of iZotope Insight and Youlean Loudness Meter is the long‑term histogram or spectrogram view. Over the course of an entire episode, you can see if certain sections are suddenly brighter or darker. This helps you ensure that transitions between hosts, interview segments, or ad reads maintain the same tonal balance. If a guest sounds drastically different, you can apply corrective EQ to that track using the long‑term spectrum as a target. This ensures every episode sounds cohesive even when recording conditions vary.

Case Study: Transforming a Boxy Home Recording

A podcaster records in a spare room with bare walls. The recording sounds hollow and “canned.” A spectrum analyzer reveals a prominent peak at 180 Hz (room resonance) and a dip at 600 Hz (comb filtering from desk reflections). Without visual feedback, the podcaster might boost the 600 Hz range, but that would also boost the problematic 180 Hz area? Actually, boosting 600 Hz would not help the room mode. The correct approach: apply a narrow cut at 180 Hz (‑4 dB, Q=3) to kill the resonance, then a gentle boost at 600 Hz (‑2 dB? No, a boost would increase the perceived boxiness. Instead, use a shelf to add air above 8 kHz to offset the muffled quality. The analyzer shows the cut at 180 Hz flattens the peak, and the high‑shelf boost lifts the top end, making the voice sound present without the honk. The before‑and‑after overlay in the analyzer confirms a nearly flat response from 100 Hz to 8 kHz. The podcaster now has a repeatable template for future episodes recorded in the same room.

Avoiding Over‑Reliance and Maintaining Balance

The analyzer is an incredibly useful guide, but it is not a substitute for critical listening. Here are the most common mistakes:

  • Chasing a flat spectrum – A completely flat spectrum sounds unnatural. Voices have a natural rise in the low mids and a gentle roll‑off in the highs. Use a reference track to understand what a “good” curve looks like for your voice type.
  • Making cuts too wide – A wide Q cut removes not only the problem but also the desired body of the voice. Start with a narrow Q (2–4) and widen only if the cut doesn’t reduce the peak adequately.
  • Relying on the analyzer for transient content – Speech contains fast transients (plosives, sibilants) that may not appear on a slow analyzer. Use a spectrogram (color‑coded time‑frequency display) to see these events. iZotope Insight and SPAN offer spectrogram modes.
  • Ignoring the overall listening experience – Sometimes the spectrum may look perfect, but the mix lacks energy or feels sterile. Always check your emotional reaction to the podcast after making EQ changes. If the mix sounds lifeless despite a smooth curve, add a tiny low‑shelf boost to restore openness.
  • Forgetting to check mono compatibility – Podcasts are often consumed on mono devices (phones, smart speakers). Use the analyzer’s mid‑side mode to ensure the voice is mostly in the mid channel. Switch your system to mono while watching the analyzer — if the spectrum changes drastically, you have phase issues.

Building a Consistent Podcast Sound with Analyzer Templates

Consistency across episodes is what builds a brand. Create a DAW template that includes your chosen analyzer on the master bus and on each vocal track. Set the analyzer to a consistent FFT size (8192) and display mode (e.g., “spectrum” with 50% overlap). After mixing an episode, take a screenshot of the master bus spectrum. In the next episode, import that screenshot as a reference image (many DAWs allow image overlays or you can keep it open on a second monitor). Adjust your mix to match the overall shape. Over time, you will train your ears to achieve that same tonal balance without constant visual checking.

If you use iZotope Insight, you can export a loudness and spectrum report as a PDF. Compare reports across episodes — if the integrated loudness differs by more than 1 LU, or the spectrum deviates significantly in the low mids, you know you need to adjust. This data‑driven approach is used by professional podcast networks (e.g., NPR, Gimlet) to ensure every episode sounds seamless regardless of who mixed it.

Conclusion

Frequency analysis is not an optional luxury for podcasters — it is a practical, time‑saving technique that brings objective clarity to subjective mixing. By learning to read a spectrum display, you can diagnose muddiness, harshness, and rumble with surgical precision, then apply targeted EQ that leaves the voice transparent and engaging. Start with free tools like Voxengo SPAN or Youlean Loudness Meter, practice on recordings from your own room, and gradually incorporate advanced techniques like dynamic EQ and mid‑side processing. Within a few episodes, you will build an intuitive understanding of how frequency balance affects listener retention. The result is a podcast that sounds polished, professional, and consistent — episode after episode.
