What Is Phase Coherence?

Phase coherence describes how consistently two or more audio signals maintain their phase relationship over time. When multiple microphones capture the same source or multiple speakers reproduce the same signal, the resulting sound waves must align in both time and polarity. If they do not, destructive interference can ruin clarity.

Every sound wave consists of positive pressure peaks and negative pressure troughs. Two waves that are perfectly in phase (0 degrees apart) will combine constructively, increasing amplitude. Waves exactly 180 degrees out of phase cancel completely, producing silence or a thin, hollow effect. Partial misalignment creates comb filtering – a pattern of peaks and notches across the frequency spectrum that permanently degrades the mix's transparency.

In a 5.1 surround system, phase relationships between all six channels – left, center, right, left surround, right surround, and the subwoofer – are critical. Even small timing or polarity errors can ruin the immersive illusion, making sounds seem to arrive from wrong directions or causing listener fatigue over long sessions.

Why Phase Coherence Matters in 5.1 Mixing

Clarity and Intelligibility

Dialogue typically lives in the center channel. If the center signal is even slightly out of phase with the left and right, speech can sound smeared or hollow. This becomes disastrous when the mix is downmixed to stereo or mono for broadcast and streaming – out-of-phase elements may vanish entirely. For a film mixer, losing dialogue intelligibility is unacceptable. Phase coherence ensures that every syllable remains crisp, regardless of playback format.

Accurate Sound Localization

Surround sound relies on subtle inter‑channel level and timing differences to create directional cues. Phase errors corrupt these cues immediately. For example, a helicopter panning from left front to right rear should move smoothly. If the left surround and right surround channels are phase‑incoherent, the phantom image may jump or become unstable, shattering the realism. In music mixing for surround, a lead vocal or instrument placed in the center must stay locked there, not drift when the listener moves their head.

Bass Management and Subwoofer Integration

The .1 (LFE) channel typically handles low frequencies below 80–120 Hz, while the main speakers use high‑pass filters to remove bass. These crossover filters – often Linkwitz‑Riley at 80 Hz – introduce a 360‑degree phase rotation across the transition band. If the subwoofer's output is not time‑aligned with the satellites, frequencies near the crossover point can cancel or reinforce unpredictably. The result is either weak bass or a boomy, indistinct low end. Proper phase coherence means the subwoofer integrates seamlessly, providing extension without drawing attention to itself.

Surround Channel Consistency

Many sound designers employ stereo pairs for ambient effects – rain, wind, crowd noise – that should envelop the listener evenly. If the left surround and right surround are out of phase, the diffuse background can become lopsided, swishing back and forth instead of creating a stable soundfield. Phase‑coherent surround beds keep the environment locked and immersive, even when the listener turns their head.

Mono and Stereo Compatibility

A 5.1 mix is often summed to stereo for headphones or to mono for portable speakers and single‑speaker devices. Phase cancellations that are subtle in multichannel become severe in mono. A mix that sounds huge in the studio can collapse into a thin, weak signal when played back on a phone or a PA system. Maintaining phase coherence from the start guarantees translation across all playback scenarios.

Psychoacoustic Stability

Human hearing is remarkably sensitive to phase anomalies, even if we cannot always articulate them. Out‑of‑phase content creates a sense of "unrest" or "swimming" in the soundstage. It can increase listening fatigue because the brain constantly tries to resolve conflicting spatial cues. A phase‑coherent mix feels solid, comfortable, and easy to listen to for extended periods – a hallmark of professional work.

Techniques to Achieve Phase Coherence

Microphone Placement and Recording

The foundation starts at the microphones. For multi‑mic setups, follow the 3:1 rule: the distance between microphones should be at least three times the distance from each mic to the source. This minimizes phase interference. When recording a single source with multiple mics (e.g., drum overheads or a guitar cabinet), align capsules physically as closely as possible and use time‑alignment tools in post. For stereo pairs, consider using coincident techniques (XY, MS) that inherently avoid phase offset.

Time Alignment in the DAW

In post‑production, sounds captured by different microphones arrive at slightly different times. A snare drum hit may reach the overhead mic a few milliseconds after the close mic. Zoom in on the waveform and slide tracks until transients align visually. Dedicated plugins like Sound Radix Auto‑Align automate this by measuring cross‑correlation and adjusting delay automatically. For multichannel film stems, manual alignment of dialogue takes is often necessary to match production sound and ADR.

Polarity and Phase Rotation

Sometimes a track has the correct timing but an inverted polarity (180 degrees). Flipping polarity is a single button click, but more subtle phase rotation using all‑pass filters can correct time‑based shifts introduced by analog gear or equalizers without altering transient alignment. Use a phase rotation plugin sparingly; over‑rotation can smear transients or cause pre‑ringing.

Monitoring in Mono for Phase Cancellation Detection

Collapsing your 5.1 mix to mono is a brutally effective way to reveal phase issues. Any significant volume drop, comb filtering, or spectral shift becomes obvious. Make this a regular part of your mixing workflow – not just a quick check at the end. Many engineers monitor in mono for 10–15 minutes during every session to catch problems early.

Using Phase Correlation Meters

Most DAWs include a built‑in phase correlation meter (goniometer or vectorscope). A properly correlated stereo signal shows a balanced, centered display that widens with stereo content but never collapses to a thin line or becomes erratic. For 5.1, check pair‑wise correlations: L‑R, LS‑RS, and even L‑C and R‑C. Trust your ears, but let the meter confirm what you hear. Tip: If the meter often hits the sides or shows a narrow phase angle, investigate that pair.

Linear‑Phase and Minimum‑Phase Equalization

Standard minimum‑phase EQs introduce frequency‑dependent phase shifts that can upset coherence between channels. When processing multiple microphones or channels that combine later, consider using linear‑phase EQ modes (available in plugins like FabFilter Pro‑Q 3) to preserve phase relationships. Be aware that linear‑phase introduces latency and pre‑ringing, so it's not always the best choice for transient material. Use it on stereo pairs and surround beds for safe spectral correction.

Specialized Phase Correction Plugins

Plugins such as Waves InPhase and iZotope Ozone's phase controls allow precise adjustments between tracks. They can align not just the fundamental, but also the phase across the frequency spectrum. Always A/B test corrections to ensure you're not introducing new artifacts – sometimes a slight compromise is better than heavy processing.

Common Phase Pitfalls in 5.1 and How to Fix Them

Comb Filtering from Multimic Setups

Recording a single source (e.g., a choir, an orchestra, or a loudspeaker cabinet) with multiple microphones inevitably creates phase interference between mics. The result is severe frequency notches that can ruin the timbre. Fix: time‑align tracks so that the arrivals coincide, or use a small delay on some mics. Alternatively, employ an MS (mid‑side) technique where the side mic is inherently phase‑coherent with the mid. Moving microphones during recording – even a few inches – can dramatically change the comb filtering pattern.

Crossover Phasing in Bass Management

Home theater receivers and mixing consoles use high‑pass and low‑pass filters to route bass to the subwoofer. The standard Linkwitz‑Riley 4th‑order filter at 80 Hz provides 360 degrees of phase rotation over its transition band. This can cause cancellation at the crossover frequency if the sub is not time‑aligned. Fix: measure the acoustic output at the listening position with a measurement microphone and REW (Room EQ Wizard). Adjust the subwoofer delay (in milliseconds) until the response is flat. Many systems include a polarity switch (0°/180°) to help, but precise delay alignment is often required. Some DAWs allow you to insert a sample delay on the sub channel to compensate.

Surround Channel Polarity Inversion

A reversed‑polarity cable or patch bay connection on a surround channel is surprisingly common. The symptom: the surround field collapses, and the phantom center becomes unstable. Fix: check each channel's polarity using a test tone (e.g., 1 kHz sine) and an oscilloscope or polarity meter. Most DAW utility plugins can invert phase on any channel instantly. Verify by listening in mono – an inverted channel will cause a noticeable drop in level.

Artifacts from Upmixing or Encoding

When encoding a 5.1 mix for distribution (Dolby Digital, DTS, or Dolby E), the encoding/decoding process can introduce phase shifts or delays. Fix: always monitor the encoded output to verify that phase relationships are preserved. If possible, listen to the final bitstream on a calibrated consumer system. For broadcast, use a Dolby encoder with known latency compensation. Some encoders offer a "phase check" mode that outputs a test signal to verify alignment.

Reverb and Delay Returns

Lexicon, TC Electronic, and convolution reverbs can smear the phase of the wet signal. If you send a stereo source to a reverb and the return is misaligned, it can reduce the clarity of the dry source. Fix: use pre‑delay to separate the direct sound from the reverb tail, and consider aligning the reverb return's transient to the dry signal. For surround reverbs, ensure all outputs (L, C, R, LS, RS) have consistent latency. Some reverbs have a "phase lock" or "delay compensation" feature.

Practical Workflow for Phase‑Aware Mixing

  1. Organize your session – Group channels logically (LCR, surrounds, LFE) and label all tracks clearly. Use colour coding for phase‑sensitive groups.
  2. Use pair‑wise phase correlation meters for each stereo pair (L‑R, LS‑RS) and for the left‑center and right‑center pairs.
  3. Check phase before adding effects – Reverb and delay can mask phase issues, but they also compound problems when applied to out‑of‑phase sources. Get the phase right first.
  4. Monitor in mono frequently – If the mix sounds good in mono, it will sound great in surround. Make a habit of switching to mono every 20 minutes.
  5. Archive a "phase‑clean" mix – Save a version with phase corrections baked in before sending to mastering or encoding. Provide stems that are phase‑coherent to avoid costly corrections downstream.
  6. Test on multiple systems – Listen on headphones, small speakers, a 5.1 consumer system, and in mono to verify translation. Phase issues often reveal themselves on less forgiving playback chains.

Advanced Considerations: Phase in Immersive Audio

While this article focuses on 5.1, the principles extend directly to Dolby Atmos and other object‑based formats. In Atmos, individual audio objects can be placed anywhere in a 3D space; phase coherence between object beds and the fixed channels remains critical. Additionally, binaural rendering for headphones uses HRTFs that rely on phase cues; out‑of‑phase content can cause bizarre localization artifacts. As immersive audio becomes standard in film, gaming, and music, understanding phase coherence is more vital than ever.

Tools and Resources

Several hardware and software tools can help maintain phase coherence:

  • Measurement microphones and REW (Room EQ Wizard) – for acoustic phase alignment in the listening environment. Measure impulse response to see phase delays.

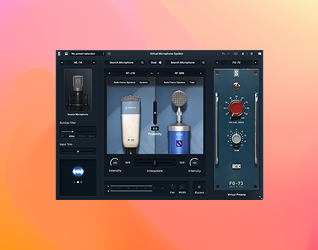

  • Time‑aligners: Sound Radix Auto‑Align, Slate Digital Virtual Microphone System includes phase coherence checks.
  • Vector scopes and goniometers – built into most DAWs, or third‑party like Blue Cat’s MB‑7 Mixer that has per‑band scope views.
  • Fundamental education: Read Sound On Sound’s deep dive on phase for a solid theoretical background. The book "Mixing Audio" by Roey Izhaki also has excellent chapters on phase.

Conclusion

Phase coherence is not an optional layer of polish – it is a foundational requirement for a professional 5.1 mix. From dialogue clarity to bass punch, from surround envelopment to mono compatibility, every aspect of the listening experience depends on correct phase relationships. By incorporating phase‑checking into recording, editing, mixing, and monitoring stages, you produce mixes that translate reliably across formats and systems, earning the trust of clients and listeners alike. Whether you are scoring a feature film, mixing a concert video, or designing a game soundscape, keeping phase in its proper place will make your work sound solid, spacious, and truly immersive.
